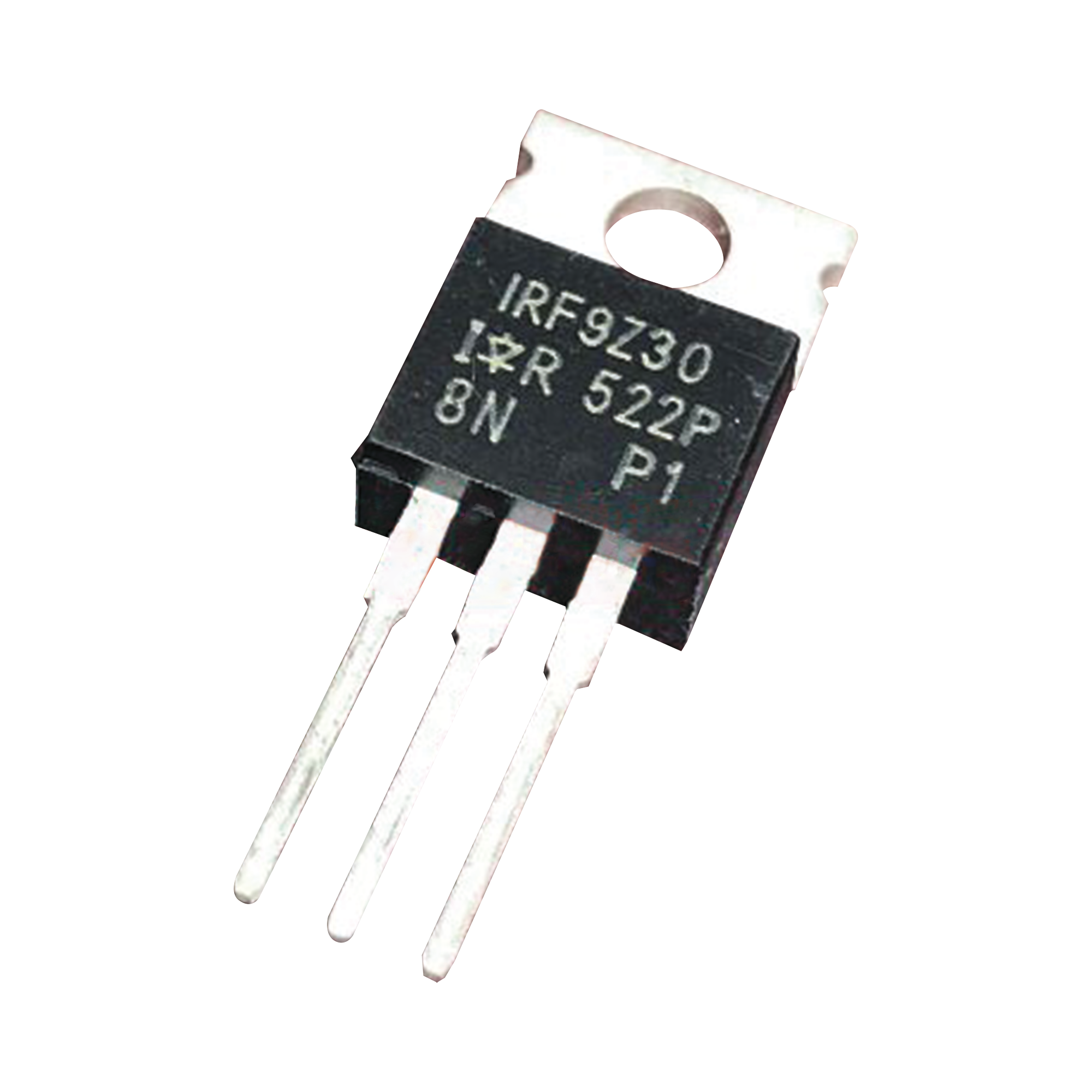

Transistor de Potencia MOSFET, Canal P, 50 Volt, 18 Amp., 0.14 Ohm, 74 Watt, TO-220AB, para Analizador III.
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
50 V |
|
|
Current – Continuous Drain (Id) @ 25°C |
18A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
|
Rds On (Max) @ Id, Vgs |
140mOhm @ 9.3A, 10V |
|
|
Vgs(th) (Max) @ Id |
4V @ 250µA |
|
|
Gate Charge (Qg) (Max) @ Vgs |
39 nC @ 10 V |
|
|
Vgs (Max) |
±20V |
|
|
Input Capacitance (Ciss) (Max) @ Vds |
900 pF @ 25 V |
|
|
FET Feature |
– |
|
|
Power Dissipation (Max) |
74W (Tc) |
|
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
|
Mounting Type |
Through Hole |
|
|
Supplier Device Package |
TO-220AB |
|
|
Package / Case |
TO-220-3 |
|
|
Base Product Number |
